Data Collector Trohestar NS2203

Data Collector Trohestar NS2203

 30,000.00

Available: In Stock
Quantity: 5
  • Wireless barcode scanner designed with 1.8 inch TFT color LCD screen. You can view barcode content, type, number and length in real time on the screen, you can monitor the remaining battery power, signal strength and transmission status
  • Instant upload mode, storage mode, inventory mode and collection mode. wireless and usb wired, Internal offline storage supports up to 100,000 barcodes in offline storage mode
  • Can read various types of 1D barcode. Supports lightning scanning and upload of blurry or broken barcodes under strong and dim light
  • Plug and play, no drive installation needed, ergonomic design, Compatible with Windows, works with Quick-book, Word, Excel, Novell, and all common software
  • The indoor transmission distance with obstacles is about 50m / 165ft. The outdoor transmission without obstacles can reach up to 100m / 330ft

In stock (can be backordered)

SKU: NS-2203 Categories: , Tags: , , ,
Share:

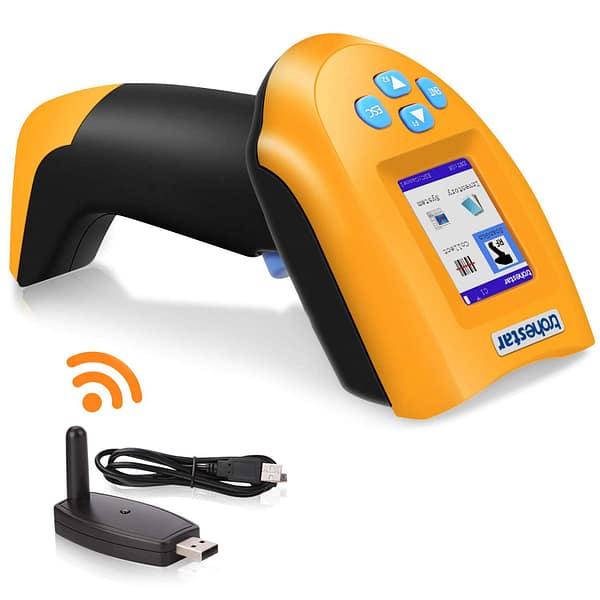

Data Collector Trohestar NS2203

Data Collector Trohestar NS2203 is a Wireless barcode scanner and barcode collector.

  • Repeated code identification function in settings can increase efficiency based on individual needs.
  • Trohestar NS2203 has large Capacity Storage with a flash memory so that can save up to 100,000 barcodes.
  • This Data Collector long transmission distance which has the advantage of strong signal and long transmission distance.

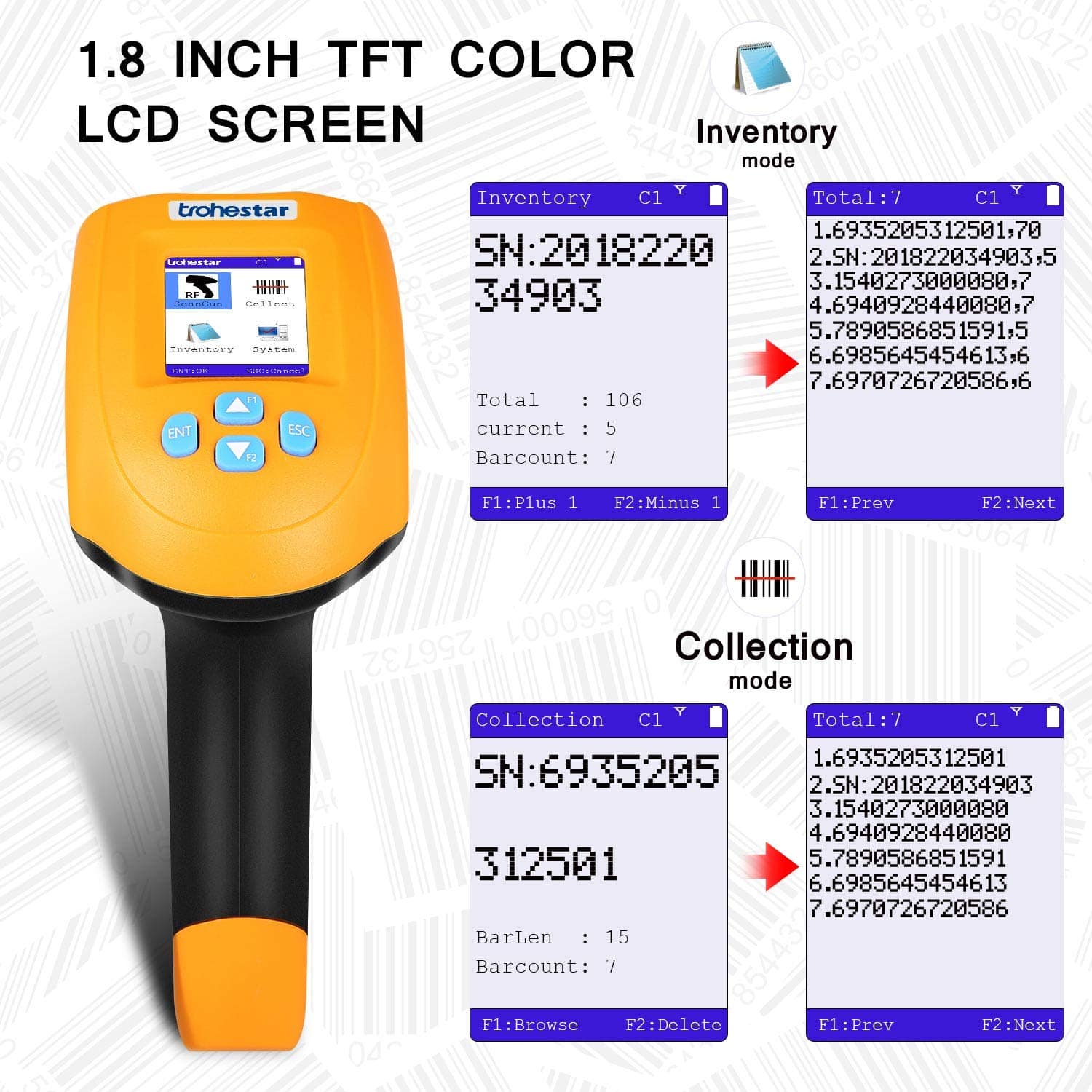

  • The Trohestar NS2203 is equipped with keyboard and is designed with 1.8-inch TFT LCD screen on which you can view the data in real time.
  • It has inventory mode in which 100,000 barcodes can be memorized and the number of barcodes can be counted.
  • Data Collect Mode is non-real-time transmission mode, all the barcode collection after mass transfer, the user can choose to export wireless. All scanned barcodes are stored in FLASH memory in scan order, and power loss does not result in data loss.
  • Note: If your barcode cannot be scanned, don’t rush to return it. Probably because the bar code density and bar code type are different from our product settings, please con tact us for special settings.

Data Collector Trohestar NS2203 Specifications:

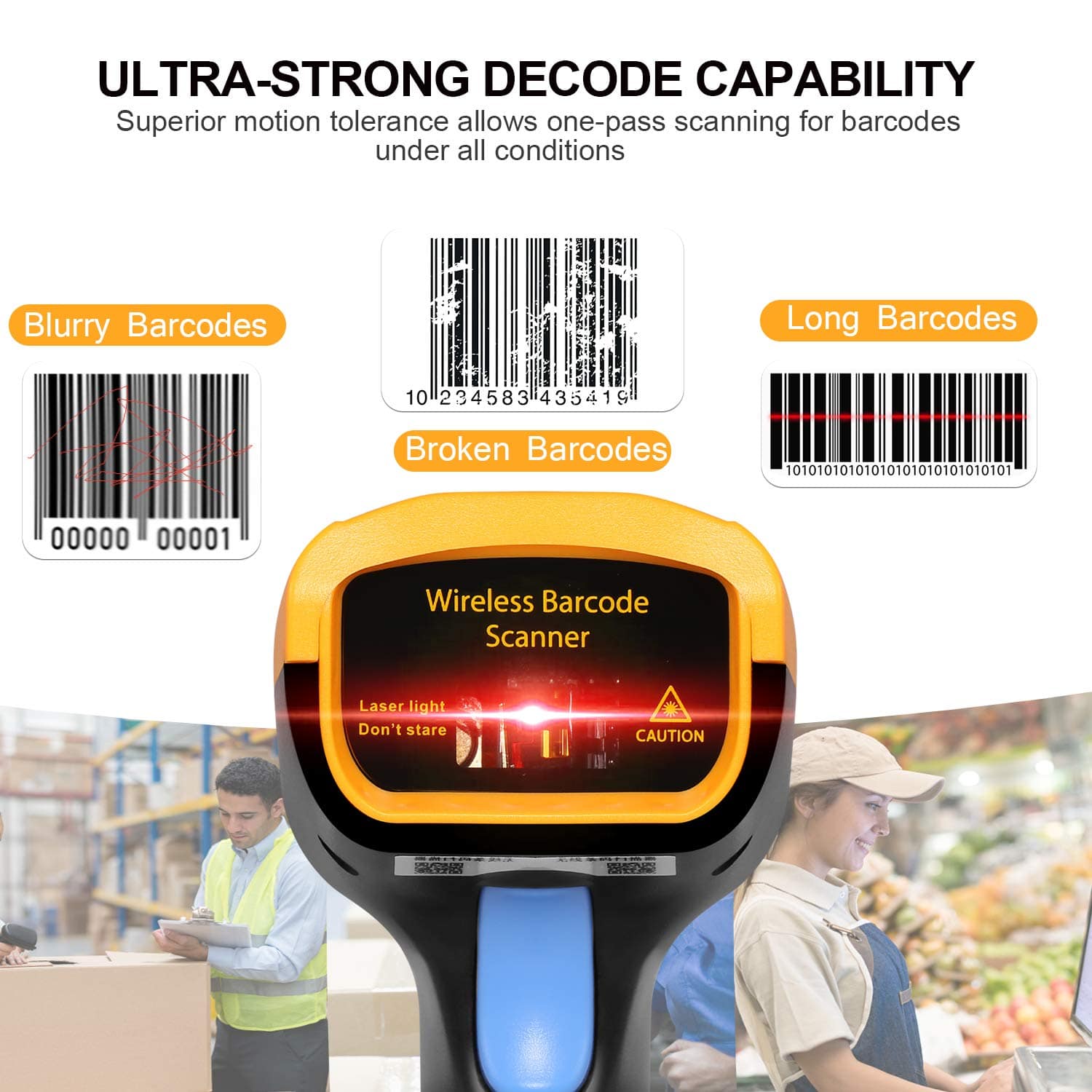

Super decode capability

Data Collector Trohestar NS2203 Adopted Laser Light Faster Scanning Speed

300 scans/s High Scanning Speed

Processes 300 scans per second in real-time delivering superior performance.

Super endurance

Data Collector Trohestar NS2203 has Built-in rechargeable battery. It can be charged by any USB port. The Trohestar NS2203 scanner has 15-50 hours of continuous scanning time. It takes 4-5 hours to full charge the scanner. Note: the scanner must be charged at turn on. Unable to charge when power off.

Trohestar NS2203 Data Collector Performance Parameters:

  • Color Depth: 32 Bit
  • CPU: 32-bit high-speed ARM series CPU
  • Display: TFT color LCD, white back-light
  • Scan mode: 650NS Laser barcode scanner
  • Wireless transmission: visible distance up to 100 m
  • Decoding Rate: 300 times/s

scanner

Data Collector Trohestar NS2203  Pairing Modes

One Scanner-to-One Receiver: one scanner transmits barcodes to one USB receiver. Several scanners can work independently with different computers in the same area. They don’t interfere with each other at work.

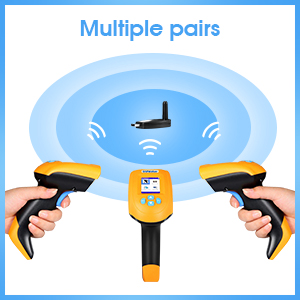

Max.30 Scanner-to-One Receiver: multiple scanners can be transferred to one receiver. Great suitable for a warehouse when several people are scanning barcodes to one computer.

11

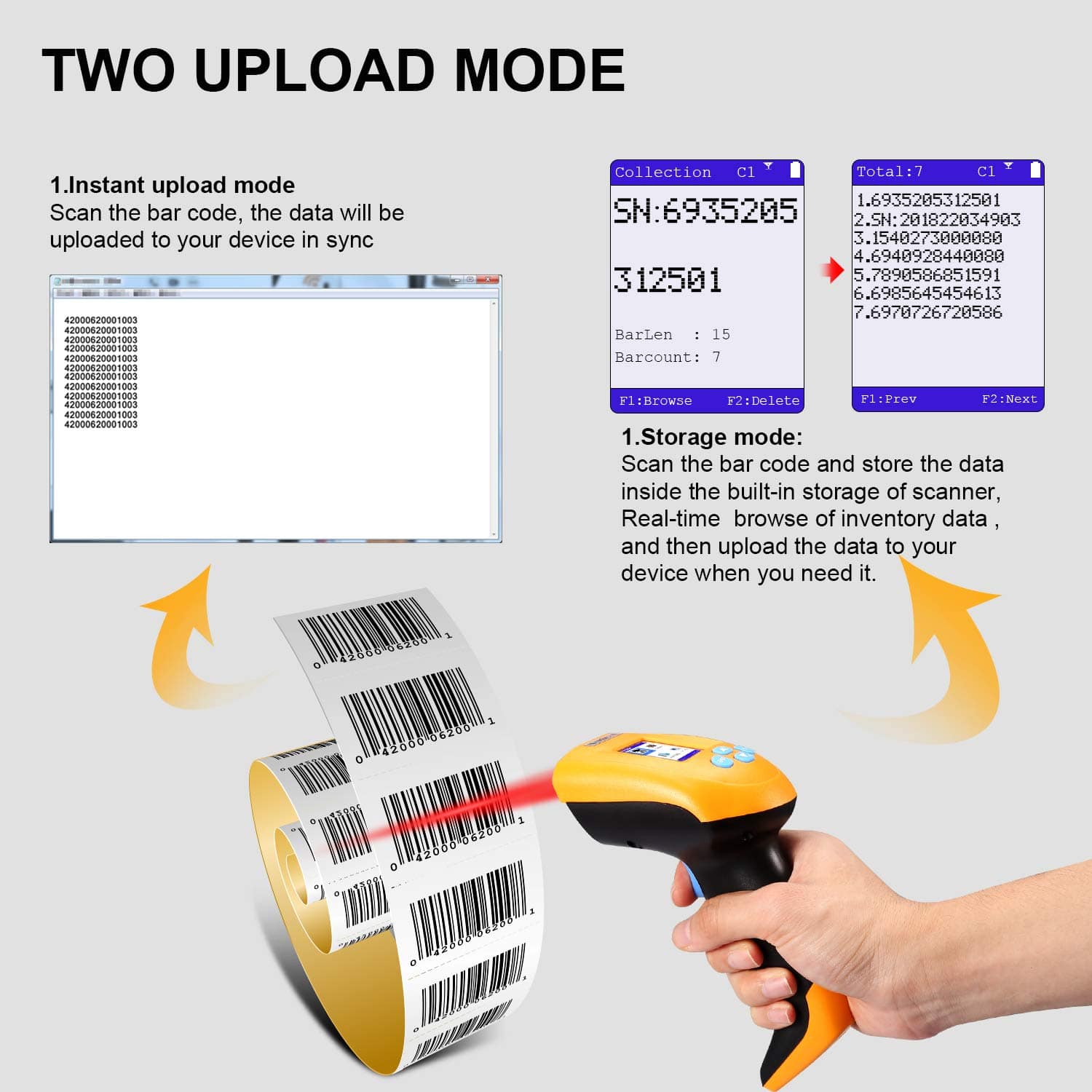

Data Collector Trohestar NS2203  Upload modes:

Instant Upload Mode can read barcodes & directly upload them to your computer system.

When using the scanner far away from the wireless signal range. Activate inventory or collect mode, all scanned barcodes will be stored directly into the built-in memory of the scanner. You can browse the barcode data in real-time on the screen. And then upload the data to your device when you need it. Internal offline storage supports up to 100000 barcodes.

more funtions

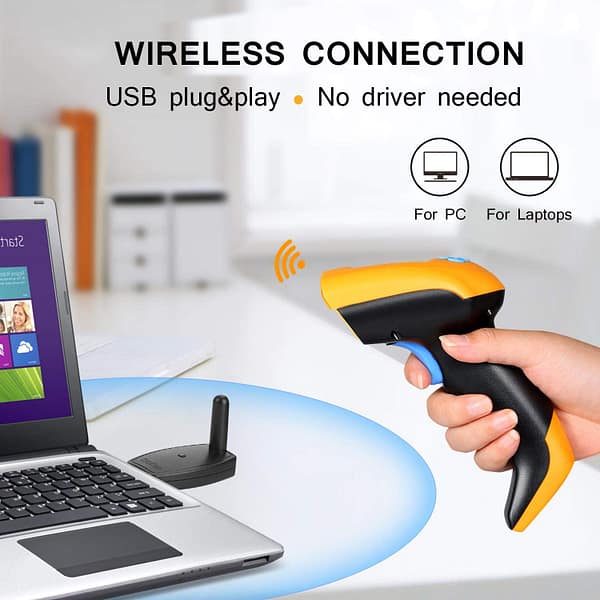

Data Collector Trohestar NS2203  is Plug & Play:

No driver installation is needed, ergonomic design. Out of the box ready for work when the USB receiver is plugged in.

bar code

Trohestar NS2203 Data Collector Compatible System

It’s only compatible with Windows 2000, Windows Vista, Windows XP,Windows 7, Windows 10 and works with Word, Excel, Nov-ell, and all common software.The bar code scanner is not compatible with Smartphone, Mac OS, Linux etc.

Over 300 Configuration Options

Over 300 Configuration Options

Support customized prefix and suffix Support Insert,delete prefix and suffix Enable/Disable Code ID and More

11

Compatible Barcode Types

The scanner supports a wide range of 1D barcode types including: UPC, EAN, Code 128, Code 39, ITF 25, Coda-bar, Code 93 and MSI. Support to read 1D UPS, USPS, FedEx, DHL, BOOK barcode.

Click here to see more Portable Data Terminals PDT’s.
