Zebra DS9308

Zebra DS9308

Available: In Stock
This product has been discontinued.

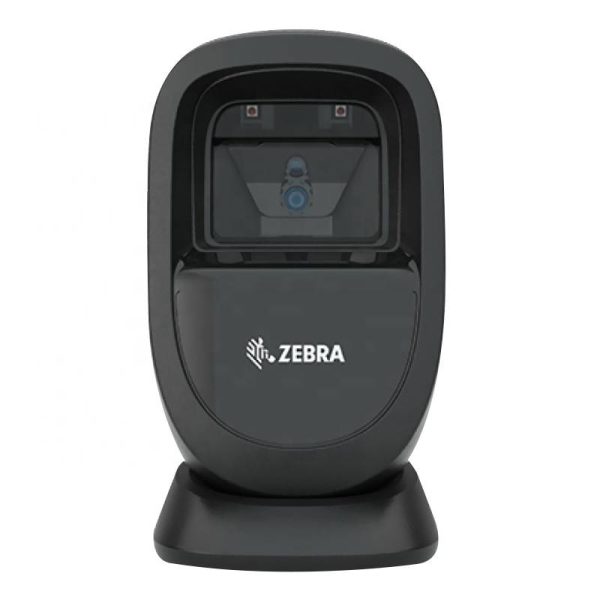

Zebra DS9308 Barcode Scanner in Pakistan

Zebra DS9308 price in Pakistan. Whether you need to scan printed barcodes on paper labels or mobile barcodes on the screen of a mobile phone, with the DS9308, you’ll be ready. You get the versatility to scan any 1D or 2D barcode — from the printed labels in retail that identify products and pricing at the register to mobile coupons, mobile gift, and loyalty cards, boarding passes, and even theater tickets. And the DS9308 provides all the features you need to keep your workers productive: industry-leading scanning speed; true point-and-shoot scanning simplicity — no need to align bar code and scanner; and hands-free and handheld flexibility.

Zebra DS9308 Barcode Scanner Technical Data:

Image Quality 120 PPI on a 4 x 6 in./10.2 x 15.2 cm document @ 4.7 in./11.9 cm
Drop Specs Withstands multiple 5 ft./1.5 m drops to concrete
Nominal Working Range
  • Code 39 – 5 mil:0 – 4.5 in. (0 – 11.4 cm)
  • UPC/EAN – 10 mil (80%):0 – 8.5 in. (0 – 21.6 cm)
  • UPC/EAN – 13 mil (100%):0 – 10.5 in. (0 – 26.7 cm)
  • PDF417 – 6.6 mil:0 – 3.8 in. (0 – 9.6 cm)
  • Datamatrix – 10 mil:0 – 4.7 in. (0 – 11.9 cm)
Minimum Resolution
  • Code 39 – 4 mil
  • UPC – 7.8 mil (60%)
  • PDF417 – 5 mil
  • Datamatrix – 7.5 mil
  • QR Code – 7.5 mil
Light Source
  • Aiming pattern: single dot, 625nm LED
  • Illumination: 630nm LEDs
Decode Capability Reads standard 1D, PDF, 2D Symbologies
Note: Decode capabilities dependent on kit configuration.
Dimensions (L x W x H)
  • 5.512 in. H x 3.232 in. W x 3.150 in. D
  • 14.0 cm H x 8.21 cm W x 8.0 cm D
Weight 9.5 oz./269 g
Input voltage
  • Idle: 5 ± 10% VDC @ 150ma average
  • Scanning: 5 ± 10% VDC @ 230ma average
Operating Temp. 32° F to 104° F / 0° to 40° C
Swipe Speed (Vertical Read Rate) Up to 90 in./2.3 m per second
Host interface USB
1D Symbologies UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code), Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codabar/NW7, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
2D Symbologies TLC-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200
(Standard, Inverse), QR Code (Standard, Inverse, Micro)
Humidity 0% to 95%RH, no condensation
Image Transfer Time Typical USB application is ~0.2 seconds with a compressed JPEG
of 100kb
Illuminance 0-100,000 Lux
Warranty 6 Months

Zebra DS9308 Barcode Scanner Price In Pakistan:

Zebra DS9308 can scan 1D, 2D, and PDF417 bar codes on paper, mobile phones, and computer displays. Scan virtually any bar code on any medium and supports the technology your customers are embracing — mobile barcodes. Dual-mode functionality saves time; keeps lines moving and minimizes wait times and eliminates the need to lift heavy items, reducing the opportunity for injury.

Zebra DS9308 price in Lahore:

Pre-configured and ready to use right out of the box. Auto-host cables will identify your Point of Sale (POS) interface and connect the imager, simplifying, and reducing setup time. Allows simultaneous scanning of a group of bar codes and reports only the selected bar code(s) in a pre-selected order. Improves scanning performance by minimizing stray light and reducing
reflections to the imaging sensor

Zebra DS9308 Barcode Scanner Price in Karachi

Protects productivity in noisy environments, such as theaters, airports, and restaurants by providing both visual and audible confirmation. Congratulations, we are now delivering the Zebra DS9308 barcode scanner to Karachi.

Zebra Barcode Scanner Price in Islamabad

With the DS9308, you are ready to complete the mobile barcode transaction chain, able to scan virtually any mobile bar code on any type of display — protecting service levels and customer loyalty. We also have an outlet in Islamabad and Rawalpindi. To purchase your Honeywell, Symbol, Zebra barcode scanner, please visit.
