Biometric Systems
Digital Persona URU 4500 Fingerprint Reader
₨ 20,000.00
✅ In Stock (21 Units Available)
Ships within 24 hours
🔒 Genuine Warranty
🚚 Order within --h --m --s for same-day dispatch.
In stock
💬 Talk to a Hardware Expert on WhatsAppDelivery
Pakistan-wide
Warranty
Brand Assured
Support
TechGuys Team
⚡ Related Enterprise Hardware
Technical Specifications
| Feature / Specification | Cheap Marketplace Clones / Refurbished (Daraz/Generic) | Standalone Wall Attendance Boxes | Digital Persona URU 4500 Fingerprint Reader | FBI PIV / FAP20 Government Scanners (SecuGen / Suprema) |
|---|---|---|---|---|
| Optical Sensor Resolution | ❌ Degraded / Scratched 350–450 DPI Prism | 500 DPI Uncoated Glass | 512 DPI Silicone-Coated Optical CMOS ✅ | 500 DPI FAP20 Optical Glass |
| Chassis Construction | ❌ Lightweight Hollow Plastic (Slides on desk) | Wall-Mounted Plastic Box | 105g Weighted Die-Cast Metal Base ✅ | Compact ABS Plastic Housing |
| Dry / Sweaty Finger Capture | ❌ High False Rejection Rate (FRR) | Moderate (Fails on dry skin) | ✅ Instant Capture + Latent Print Rejection | ✅ High Capture Accuracy |
| Custom Software SDK (C# / WebAPI) | ❌ Driver Signature Errors on Windows 11 | ❌ Closed Firmware (No PC USB SDK) | ✅ Full C#, .NET, Java, C++ & JS WebAPI SDK | ✅ Government BVS / NADRA SDK |
| ESD & Surge Protection | ❌ None (Disconnects on UPS switching) | Basic 12V Adapter | ✅ ±15 kV ESD + Shielded 1.8m Choke Cable | ✅ ±15 kV ESD USB Protection |
| Price & Best Use Case in Pakistan | PKR 11,000–14,500 (High failure rate) | PKR 18,000–35,000 (Door access only) | PKR 20,000 (Best for Custom ERP, Gym, HMS & POS) ✅ | PKR 17,500–20,000 (Best for NADRA/BISP/SIM BVS) |
| Specification Parameter | Engineering Value |
|---|---|
| Brand & Model | Digital Persona URU 4500 Fingerprint Reader (HID Global P/N: 50013-001-103) |
| Optical Sensor Technology | Optical CMOS Fingerprint Imaging Sensor with Silicone-Coated Glass Platen |
| Pixel Resolution | 512 DPI (true average x, y across the scan field) |
| Active Scan Capture Area | 14.6 mm (nominal width at center) × 18.1 mm (nominal length) |
| Grayscale Image Depth | 8-bit grayscale (256 levels of gray) with encrypted raw image output |
| Platen LED Illumination | Soft Cool-Blue LED with status feedback blink on scan capture |
| Communication Interface | USB 2.0 Full Speed (USB 1.1 / 3.0 compatible) with 1.8m (70-inch) shielded cable |
| Supply Voltage & Current | 5.0V ±5% via USB bus | < 100 mA (Scanning), < 120 mA (Peak), < 2 mA (Sleep Mode) |
| Physical Dimensions & Weight | 65 mm (L) × 36 mm (W) × 15.56 mm (H) | 105 grams (Weighted Die-Cast Metal Base) |
| ESD & Ingress Protection | ±15 kV Air Discharge / ±8 kV Contact ESD | IP64 Top Platen Seal against dust & moisture |
| Operating Temperature & Humidity | 0°C to +40°C (32°F to 104°F) | 20% – 80% non-condensing (Pakistani summer rated) |
| Supported Operating Systems | Windows 11 / 10 / 8.1 / 7 (32-bit & 64-bit), Windows Server, Linux, Android (via USB OTG) |
| Developer SDK & Runtime Support | DigitalPersona One Touch / Gold SDK / UareU RTE / Lite Client (C#, VB.NET, C++, Java, JS WebAPI) |
| International Certifications | FCC Class B, CE, ICES, BSMI, MIC, USB-IF, WHQL, RoHS, UL |
| Dimensions | N/A |
Overview

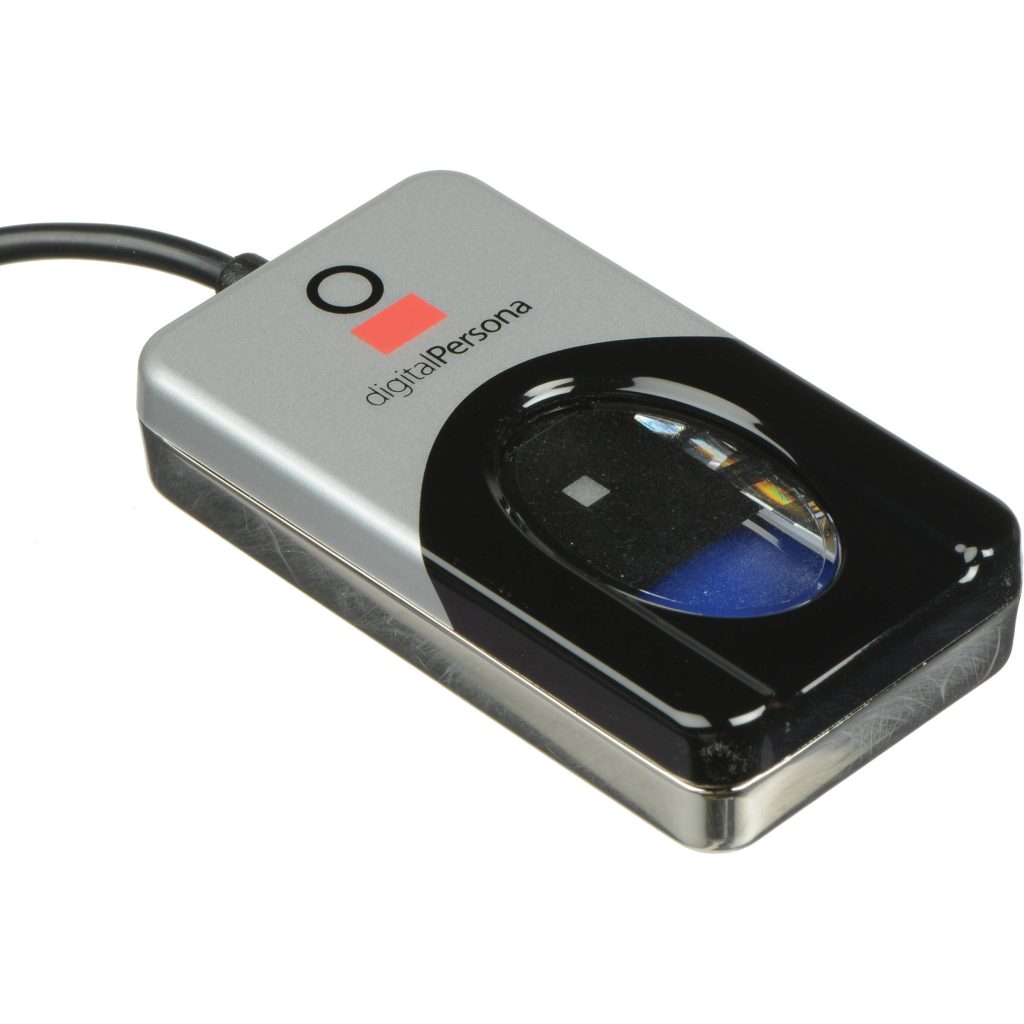

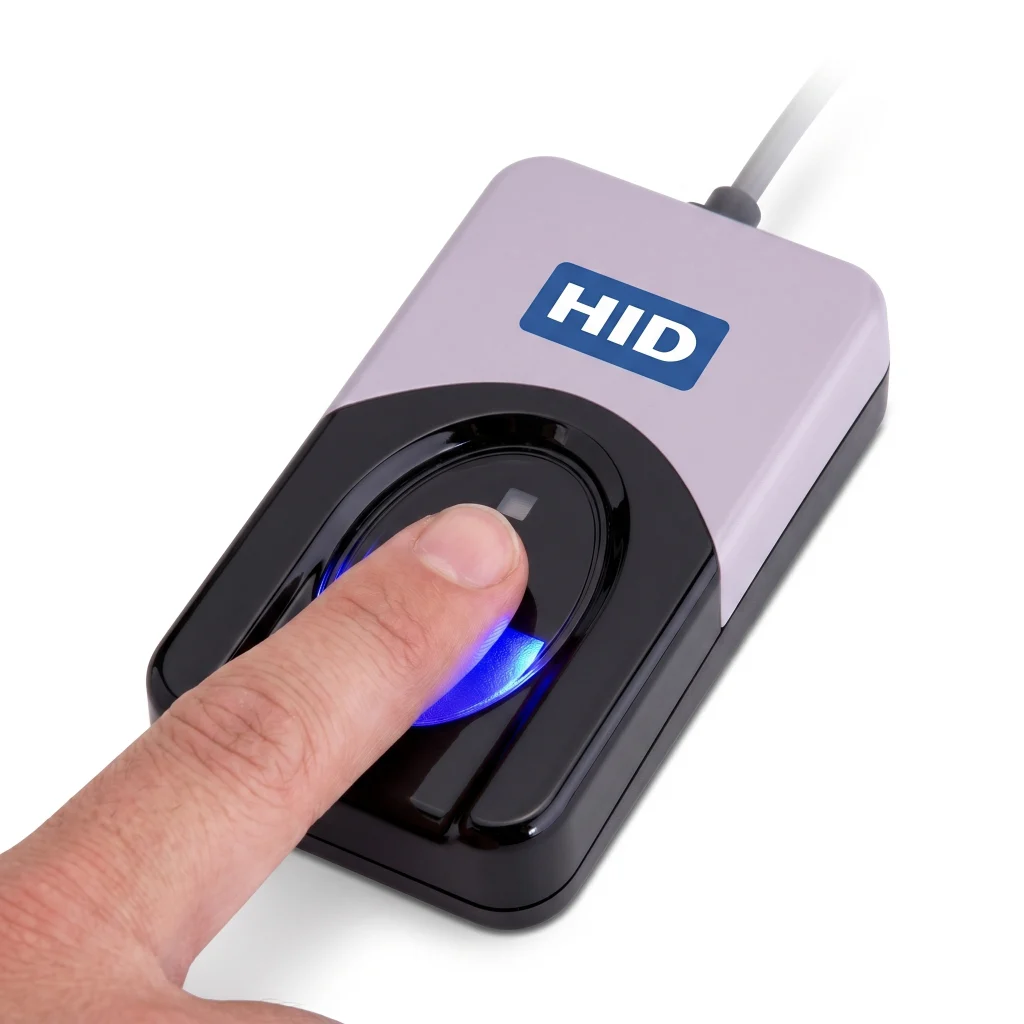

Digital Persona URU 4500 Fingerprint Reader: 512 DPI USB Optical Biometric Scanner
The Digital Persona URU 4500 Fingerprint Reader (official HID Global Part Number 50013-001-103) is Pakistan’s industry-standard commercial USB desktop biometric scanner, engineered for high-throughput identity verification across commercial bank branches, microfinance counters, software houses, hospital reception desks, gym turnstiles, and retail point of sale workstations. Built around a precision 512 DPI optical CMOS sensor with a 14.6 mm × 18.1 mm active scan window, the Digital Persona URU 4500 Fingerprint Reader utilizes advanced optical fingerprint recognition technology to capture 8-bit grayscale (256-level) ridge templates in under 0.5 seconds with full 360-degree finger rotation tolerance.
Unlike lightweight plastic thumb machines that slide off counters or fail when scanning dry, calloused, or sweaty fingers during humid Pakistani summers, the Digital Persona URU 4500 Fingerprint Reader combines a weighted 105-gram die-cast metal underbody with a specialized silicone-coated optical glass prism and built-in Latent Print Rejection. It transmits encrypted raw image data over high-speed USB 2.0 and integrates seamlessly with custom desktop and browser applications using the official HID Global DigitalPersona 4500 hardware architecture and international biometric identity authentication standards on Wikipedia.
Key Features of the Digital Persona URU 4500 Fingerprint Reader
- 512 DPI Optical Sensor & Cool-Blue LED: The Digital Persona URU 4500 Fingerprint Reader delivers distortion-free 512 DPI spatial resolution illuminated by a soft cool-blue LED platen that eliminates counter glare and blinks to confirm successful scan capture.
- Silicone-Coated Glass Prism & Latent Print Rejection: Microscopic silicone optical coating conforms to dry, moist, rough, or aged fingertips for superior first-press capture while automatically rejecting leftover oil or sweat smudges from previous users.
- Weighted 105g Die-Cast Metal Chassis: Heavy-duty metallic base wrapped in high-friction matte rubberized housing stays firmly anchored on glass or wooden desks during rapid one-handed customer thumb tapping.
- Full Multi-Language Developer SDK Support: Native compatibility with DigitalPersona One Touch, Gold SDK, UareU RTE, and Lite Client WebSDK for C#, VB.NET, Visual C++, Java, Delphi, PHP, Laravel, React, and JavaScript WebAPI across Windows 11/10 (32/64-bit), Linux, and Android OTG.
- Industrial ESD & IP64 Platen Protection: Engineered with ±15 kV Air Electrostatic Discharge protection, IP64 top-surface sealing against dust and liquid splashes, and a 1.8-meter shielded USB cable with ferrite choke for stable operation on Pakistani UPS and solar inverters.
Commercial Applications Across Pakistan
- Custom ERP, HR Payroll & Software House Deployments: The Digital Persona URU 4500 Fingerprint Reader is the #1 developer choice in Lahore, Karachi, and Islamabad for custom C# .NET desktop attendance, factory gate time-tracking, and browser-based PHP/JavaScript WebAPI portals.
- Hospital Management Systems (HMS) & Diagnostic Labs: Instant patient thumb registration, insurance verification, and staff shift sign-in at private hospitals, clinics, and welfare blood banks.
- Gym, Fitness Club & Sports Complex Access Control: Connects directly to reception PCs and turnstile relays to verify active member subscriptions and block expired memberships in real time.
- Housing Societies, Real Estate Transfer & University Exams: Biometric plot transfer verification (file verification desks), affidavit thumb capture, and student exam-hall impersonation prevention.
- Retail POS Cashier Sign-In & Manager Override: Replaces shared PIN codes and plastic swipe cards on supermarket and restaurant billing counters, locking refunds, voids, and cash drawer overrides to authorized manager fingerprints.
4-Tier Performance Comparison Matrix
Technical Specifications
Compatible Biometric & POS Hardware Ecosystem
- Explore our complete Biometric Fingerprint Scanners & Readers in Pakistan category for enterprise identity hardware.
- Need FBI PIV / FAP20 certification for NADRA e-Sahulat, BISP, or Telecom SIM BVS? Compare with our SecuGen Hamster Pro 20 (HU20) Fingerprint Reader and Suprema BioMini Slim 2 FAP20 Scanner.
- Connect directly to our Touch Screen POS Systems for biometric cashier login and supervisor override.
- Pair with our POSX 892 80mm Thermal Receipt Printer for instant biometric verification and token slip printing.
- Combine with our 1D & 2D Barcode Scanners in Pakistan for rapid CNIC QR code and membership card scanning.
Authorized Warranty & Nationwide Dispatch
- 100% Pre-Tested Stock: Every Digital Persona URU 4500 Fingerprint Reader undergoes 512 DPI optical clarity verification, USB VID/PID authenticity testing (`VID_05BA & PID_000A`), and Windows 11 64-bit SDK recognition at our Lahore Hardware Lab before dispatch.
- Physical Demonstration Showrooms: Inspect and test genuine stock at our branches in Lahore (Hall Road / Hafeez Center, Gulberg III), Islamabad (Azeem Mansion Plaza, Blue Area), and Rawalpindi (Dubai Plaza, 6th Road).
- Same-Day Courier Dispatch: Orders confirmed before 3:00 PM ship same day via TCS, Leopards, and M&P Courier with 24–48 hour insured delivery to Karachi, Faisalabad, Multan, Peshawar, Sialkot, Quetta, and nationwide.
- Complimentary SDK & Driver Package: Includes verified Windows 10/11 64-bit WHQL drivers, DigitalPersona Run-Time Environment (RTE), Lite Client WebAPI installers, and sample C#/.NET source projects.
Frequently Asked Questions
What is the price of an original Digital Persona URU 4500 Fingerprint Reader in Pakistan?
The current price of a genuine Digital Persona URU 4500 Fingerprint Reader at TechGuys Pakistan is PKR 20,000. We also provide discounted B2B wholesale pricing for software houses, banks, hospital chains, and corporate tender deployments ordering 5 or more units.
Does the Digital Persona URU 4500 Fingerprint Reader support Windows 11 64-bit, C# .NET, and Web Browsers?
Yes. The Digital Persona URU 4500 Fingerprint Reader works natively on Windows 10 and Windows 11 (32-bit and 64-bit), Linux, and Android devices via USB OTG. Developers can integrate desktop applications using C#, VB.NET, C++, and Java (One Touch / UareU SDK) or build browser-based web portals in Chrome, Edge, and Firefox using the HID DigitalPersona Lite Client and JavaScript WebSDK.
How do I identify an original Digital Persona URU 4500 vs. refurbished clones in Pakistan?
An original Digital Persona URU 4500 weighs a solid 105 grams due to its die-cast metal underbody, carries laser-etched HID/DigitalPersona regulatory serials (P/N 50013-001-103), features an unblemished soft silicone optical coating over the blue LED prism, and registers in Windows Device Manager with authentic hardware IDs (VID_05BA & PID_000A) without unsigned driver workarounds.
Should I choose the Digital Persona URU 4500 or SecuGen Hamster Pro 20 (HU20) for my project?
Choose based on your software SDK requirement: For custom C#/.NET ERP software, gym attendance, hospital management systems, housing society transfer desks, and retail POS logins built on the DigitalPersona SDK, the Digital Persona URU 4500 Fingerprint Reader is the mandatory choice. For government portals such as NADRA e-Sahulat, BISP disbursements, or PTA Telecom SIM BVS that explicitly require an FBI PIV / FAP20 SecuGen driver, choose our SecuGen Hamster Pro 20 (HU20).
Do you provide Windows drivers, SDK runtimes, and warranty support in Pakistan?
Yes. Every unit is backed by our 1-year local warranty through our service centers in Lahore, Islamabad, and Rawalpindi, and includes free access to Windows 10/11 64-bit drivers, DigitalPersona RTE runtimes, and remote technical setup support via WhatsApp (0333-2811493 / 0309-6207998).
