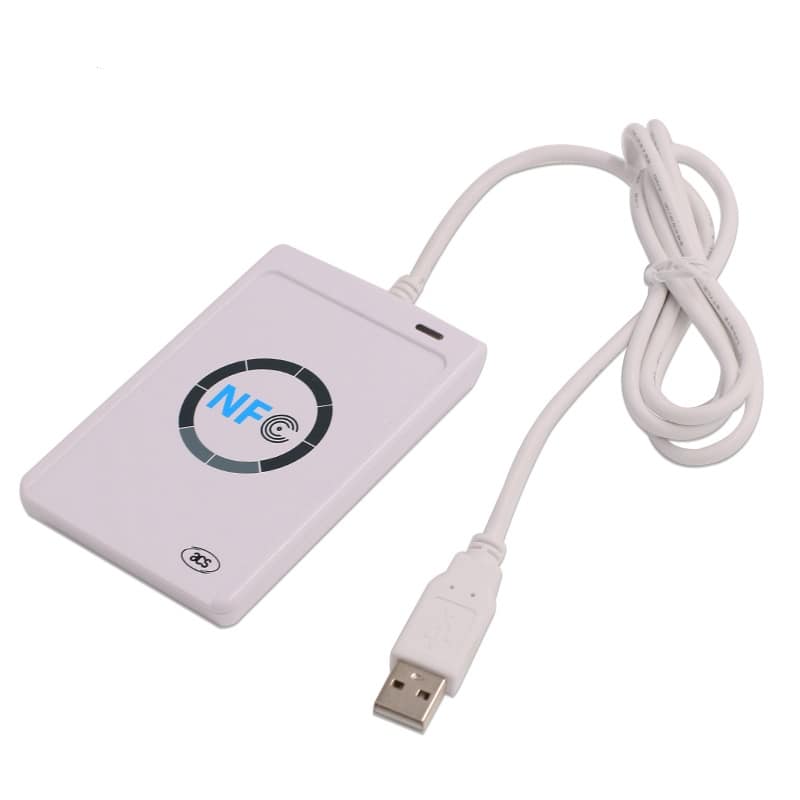

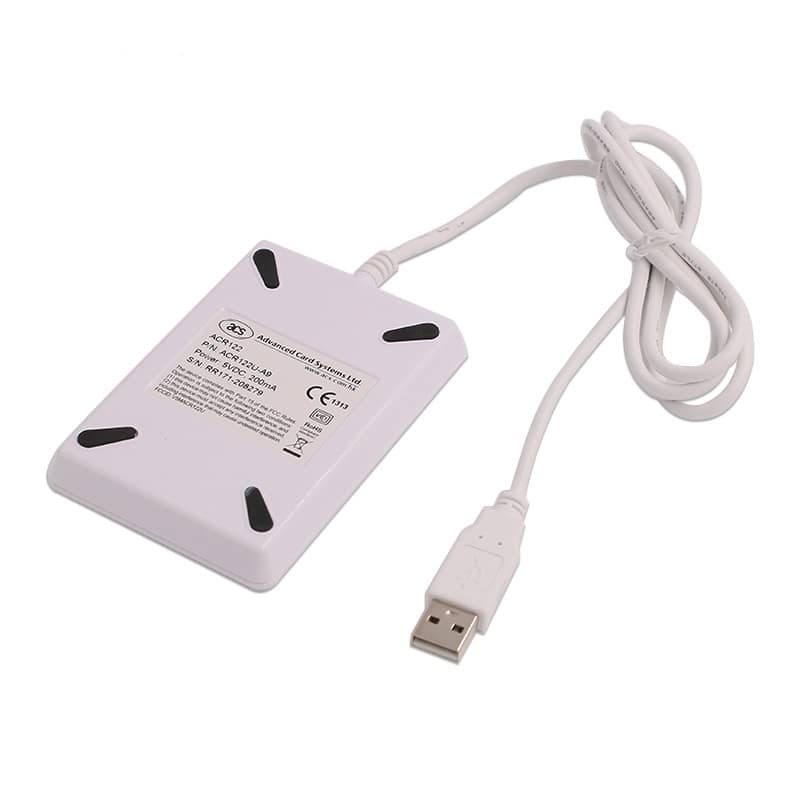

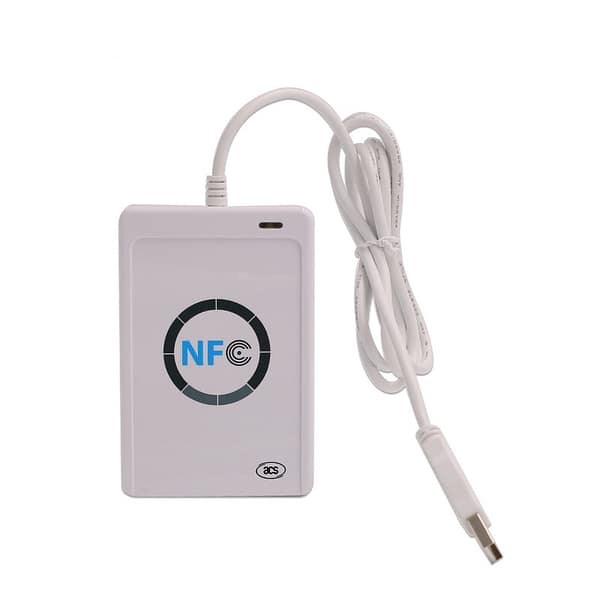

ACR 122U NFC Reader
ACR 122U NFC Reader is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz contactless (RFID) Technology. Compliant with the ISO/IEC 18092 standard for Near Field Communication (NFC), it supports not only MI-FARE® and ISO 14443 A and B cards, but also all four types of NFC tags. ACR 122U NFC reader writer is compliant with both CC ID and PC/SC.
ACR 122U NFC Reader Details:
Thus, ACR 122U NFC Reader is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR 122U can also read and write more quickly and efficiently. The proximity operating distance of ACR 122U is up to 5 cm, depending on the type of contactless tag in use.
ACR 122U NFC Reader Technical Specifications:
| Brand | ACS Honk Kong |
| Model | ACR-122U |
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H) |
| Weight (g) | 70 g |
| USB Interface | |
| Protocol | USB CC ID |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 1.0 m, Fixed |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type-A & B, MI-FARE®, FeliCa |
| Protocol | ISO 14443-4 Compliant Card, T=CL MI-FARE® Classic Card, T=CL ISO 18092, NFC Tags FeliCa |
| Built-in Peripherals | |
| LED | 1 bi-color: Red and Green |
| Buzzer | Monotone |
| Certifications/Compliance | |
| Certifications/Compliance | EN 60950/IEC 60950 ISO 18092 ISO 14443 USB Full Speed PC/SC CC ID VCCI (Japan) KC (Korea) Microsoft® WHQL CE FCC RoHS 2 REACH |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® CE Windows® Linux® MAC OS® Solaris Android™ |
ACR 122U NFC Reader Price in Pakistan:
In order to increase the security level, ACR 122U can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems, and vending machines.
What’s in the box
- ACR122U NFC Reader.
